Leader Pin Straight L=13.75 OD=2.5
Press and move to zoom.
Mouse over image to zoom.

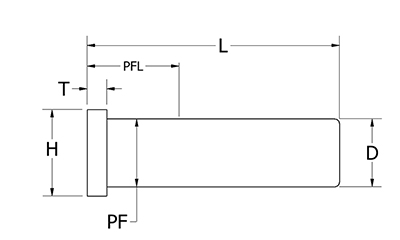

Leader Pin Straight L=13.75 OD=2.5

Product Code: LP-1375-250




Nominal
 Diameter
D
+.0000
-.0005
PF
+.0005
-.0000
H
+.000
-.010
T
+.000
-.005
   3/4"  .749  .751  .990   3/16
   7/8"  .874  .876  1.115   1/4
   1"  .999  1.001  1.240  1/4
   1-1/4"  1.249  1.251  1.490   5/16
   1-1/2"  1.499  1.501  1.740   5/16
   2"  1.999  2.001  2.240  5/16
   2-1/2"  2.499  2.501  2.740  5/16
   3"  2.999  3.001  3.365  1/2

  • Contact us for pricing

  • OD Nominal : 2.500 (2-1/2")
  • Length : 13.750 (13-3/4")
