Shoulder Ejector Pin OS D=5/64+.005 L=10 S=2 H=1/4 T=1/8
Press and move to zoom.
Mouse over image to zoom.

Shoulder Ejector Pin OS D=5/64+.005 L=10 S=2 H=1/4 T=1/8

Product Code: PSH-420-L10-O

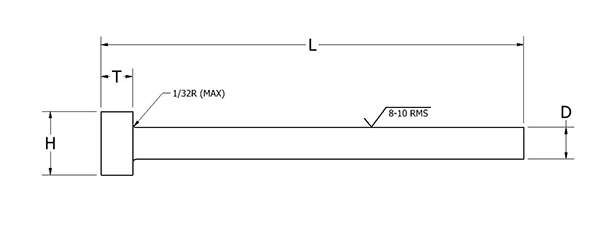

  Tolerances

Pin OD (D)    -.0003/-.0008
  Head Diameter (H)  +.000/-.010
  Head Thickness (T)  +.000/-.002
  Length (L)  +.060/-.000
  Shoulder Diameter .125"   +.000/-.001

  • Contact us for pricing

  • Diameter : .0781 (5/64)
  • Shoulder Length : 2"
  • Overall Length : 10"
  • Oversize : +.005
